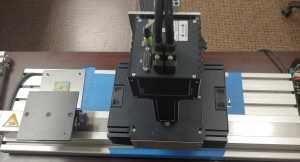

3D Line Scan System
![](https://activeinspection.com/wp-content/uploads/2019/04/TopViewCropped-300x162.jpg)
All-In-One System
Complete standalone solution provided for you
![](https://activeinspection.com/wp-content/uploads/2019/01/3DPIXADualLeft-300x174.png)

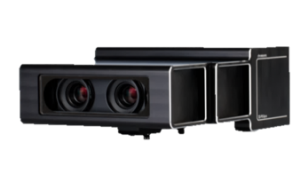

Simple Set-Up
Linear stage, fixture, camera, lighting – what you need to get started

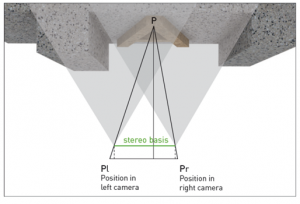

![](https://activeinspection.com/wp-content/uploads/2019/01/StereoImaging2-300x204.png)
3D Line Scan Camera
3D-PIXA stereo line scan camera featuring industry leading technology

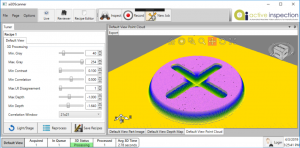

![](https://activeinspection.com/wp-content/uploads/2019/12/3DScannerApp-300x148.png)
Custom Application
Application designed specifically for use with this 3D Scanner
Thorough 3D Inspection
Inspect a part using precise imaging technology. These stereo line scan cameras designed by Chromasens have a Z-resolution up to 1µm and X&Y-resolution up to 5µm, enabling micro defects to be seen. Gain insight into 2D, 3D, depth map, intensity, color, and grayscale images efficiently all with just one scan.
![](https://activeinspection.com/wp-content/uploads/2019/11/20191106_162917-768x575.jpg)

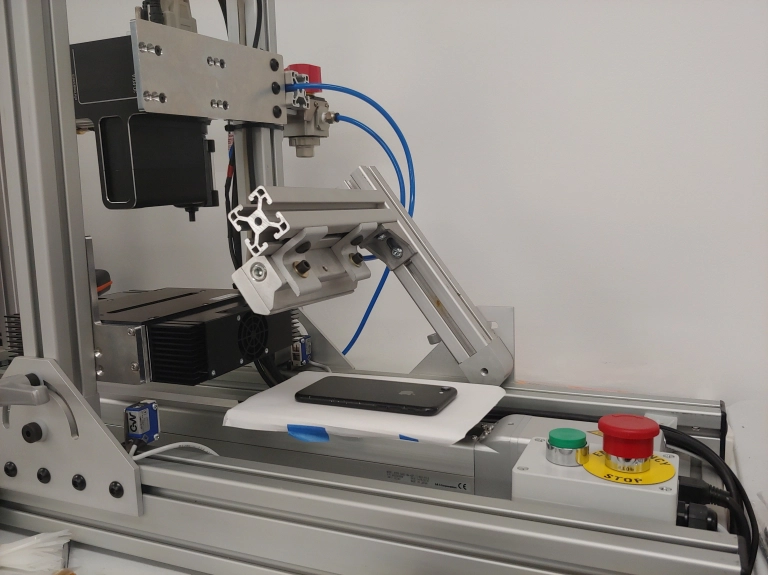

3D Scanner being used to inspect smartphones
Chromasens 3D Line Scan Cameras
- Color & height acquisition
- Scan rate up to 4,200 mm/s
- Up to 1µm Z-resolution
- Up to 5µm X&Y-resolution
Corona II Lighting
- Compact designs
- Brightfield: 300,000 Lux
- Tube Light: 1,200,000 Lux
- Dark Field: 3,500,000 Lux
Industrial Design
- Durable fixture design
- Metal construction
- Large start & emergency stop buttons
- Product lifetime support
Multi-Image Aquisition
- 2D & 3D aquisition
- Depth map & intensity images
- Color & grayscale images
Find The Details
- Review the image data
- Easily create/edit acquisition recipes
- Record images for future review
Custom App With Friendly UI
- Multiple acquisition recipes
- Quickly reprocess images
- Switch between the multiple images
-

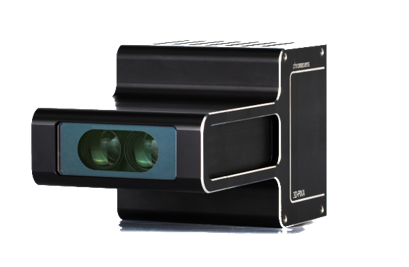

3DPIXA Compact
-

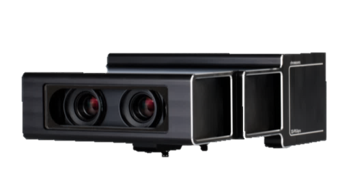

3DPIXA Dual

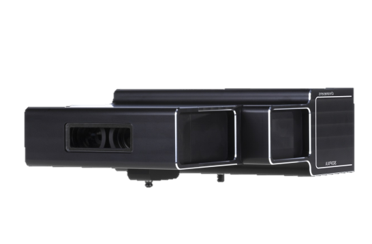

- 3DPIXA HR

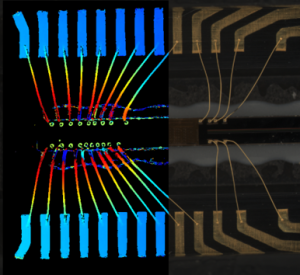

![](https://activeinspection.com/wp-content/uploads/2019/01/PCBWireBond-300x275.png)
PCB and Wire Bond Inspection

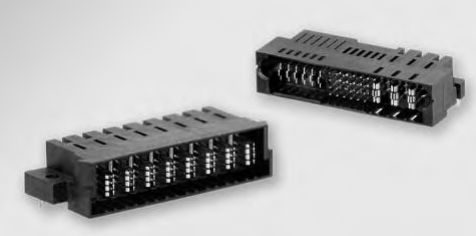

![](https://activeinspection.com/wp-content/uploads/2018/08/Connector1.png)
Connector Inspection
![](https://activeinspection.com/wp-content/uploads/2018/08/Flat_Bearing.jpg)
Bearing Inspection

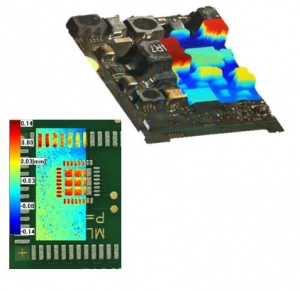

![](https://activeinspection.com/wp-content/uploads/2019/01/Electronic-300x291.jpg)
Electronics Inspection

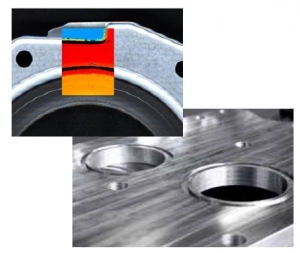

![](https://activeinspection.com/wp-content/uploads/2019/01/automotive-300x253.jpg)
Automotive Inspection
![](https://activeinspection.com/wp-content/uploads/2019/01/Food-300x208.jpg)
Food Inspection
![](https://activeinspection.com/wp-content/uploads/2019/01/Wood.jpg)
Wood Inspection
