Weld Inspection

aiWeld

Smart Design

Suitable for stationary & robot mounted sensors alike

Simple Detection

Presence & absence of welds

Advanced Detection

Porosity, length, dimensions, placement, lack of fusion, etc.

Flexible Aquisition

Multiple 3D sensor options with multi-sensor compatibility

Complete Weld Inspection

General information about weld inspection and why it is the best solution. Here it must also be conveyed to a potential customer why aiPrint is the right inspection system to meet all there print quality standards, emphasizing that it can inspect print quality and alignment on any flat surface.

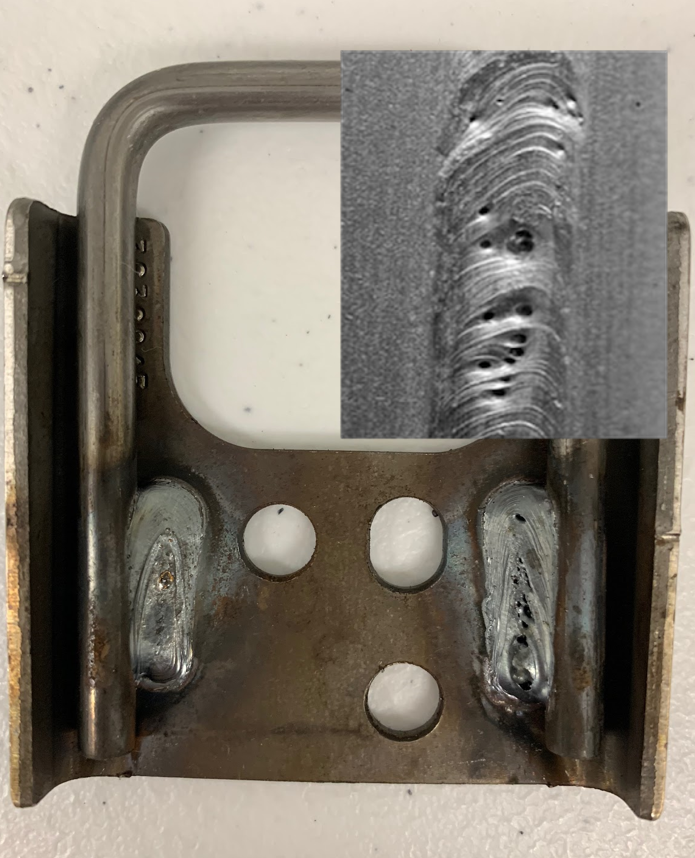

Example weld porosity

Materials

  • Steel
  • Aluminum
  • Plastic
  • More

Detailed Inspection

  • 3D point cloud
  • Depth map
  • Color & intensity

Live Inspection

  • Automatic PLC controlled acquisition
  • Manual override capability
  • Intuitive pass/fail determination
  • Interactive viewing area

SQL Database

  • Store years of inspection data
  • Defects, images, point clouds, & more
  • Generate data sheets as PDF & HTML

Data Viewer

  • Offline reviewer that connects to database
  • Runs on any Windows 7/10 workstation

Digital I/O & PLC Integration

  • Allen Bradley, Siemens, etc.
  • Configure PLC inputs & outputs
  • OPC-UA communication
